Designing (& Testing) A Solar Regenerated Desiccant Air Conditioner for our Passively Heated Solar Home, by Henry Gurr. This is the fourth of a series of nine photos. Please see the first in this series (pix 16/76) for full explanation.

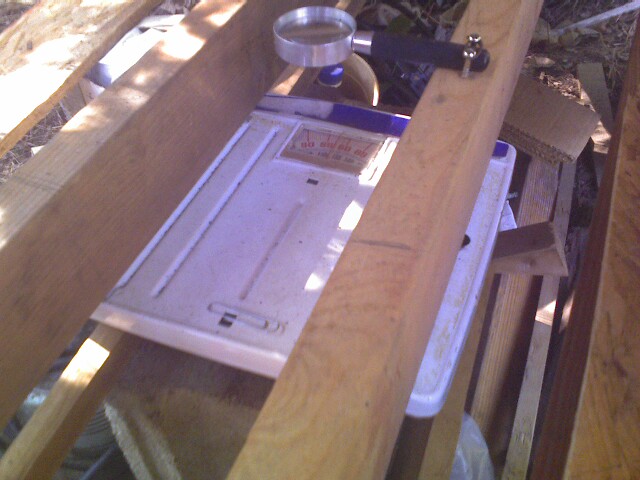

Shown here is a close up view of the bottom support of the inclined collector, showing how the bathroom scales is placed, to receive the weight of the whole collector system. This is how I determined how much weight of water the wood shavings would gain, or lose, weight of humidity (water).

Please note magnifying glass in top center of photo.
